RAID Recovery
In order to recover data from your troubled RAID array, click the 'Raid Recovery' button under 'Drive Recovery' tab..

Windows Data Recovery

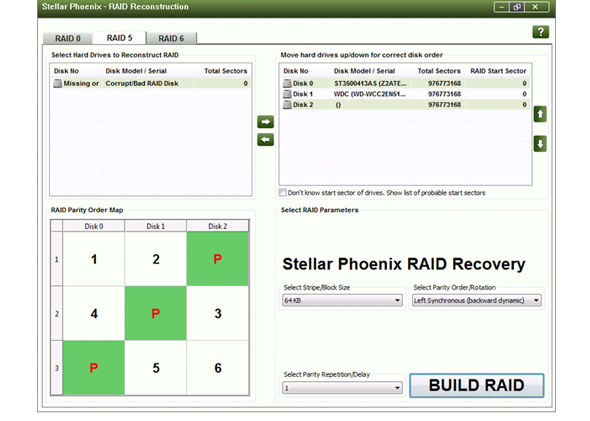

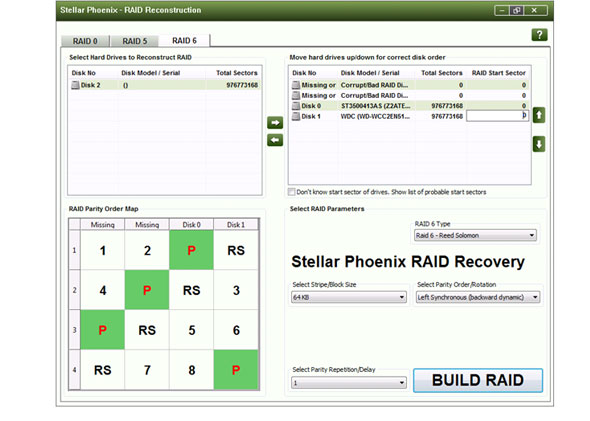

Specifying RAID 5 Parameters
Before building the RAID, provide the known parameters of the RAID array, such as disk order, RAID Start Sector, Stripe/Block Size, Parity Order/Rotation, and Parity Repetition/Delay. The below screenshot depicts RAID 5 configuration that can tolerate single disk failure.

Windows Data Recovery

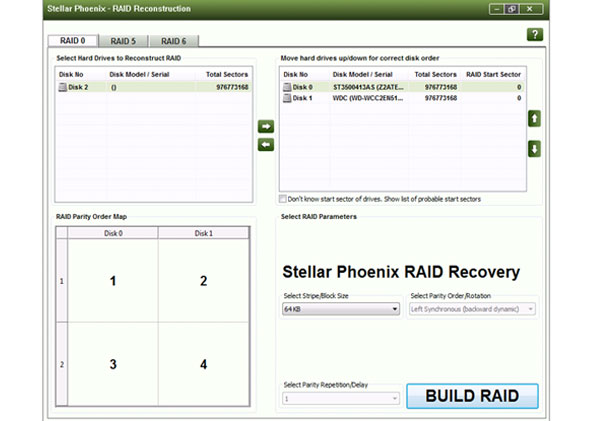

Specifying RAID 0 Parameters
The software supports data recovery from RAID 0 array. You need to provide the known RAID parameters in the 'Select RAID Parameters' box. RAID level 0 has no fault tolerance.

Windows Data Recovery

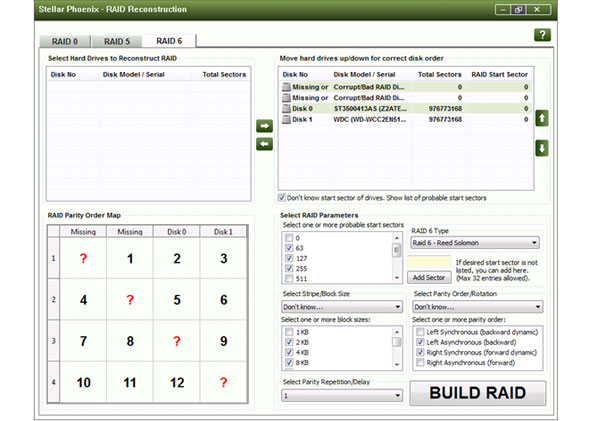

Specifying RAID 6 Parameters
You can also recover data from a RAID 6 array by providing the RAID parameters and building a probable RAID. RAID level 6 can tolerate up to two hard disk failures.

Windows Data Recovery

Building RAID When Parameters Missing

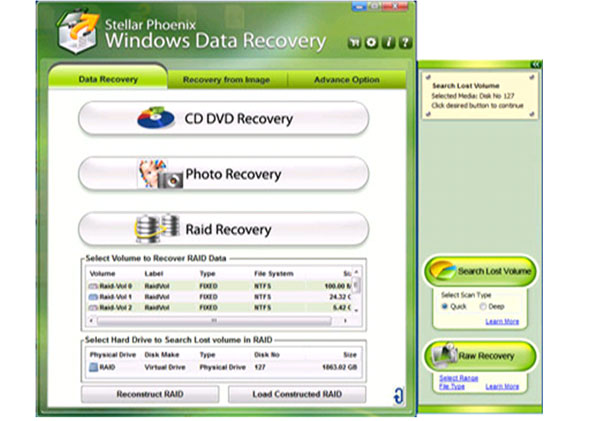

If you do not exactly remember the RAID parameters, then mention 'Don't know' and check-mark all possible options given in the drop down menu. Click 'BUILD RAID' button to see the probable RAID construction.

Windows Data Recovery

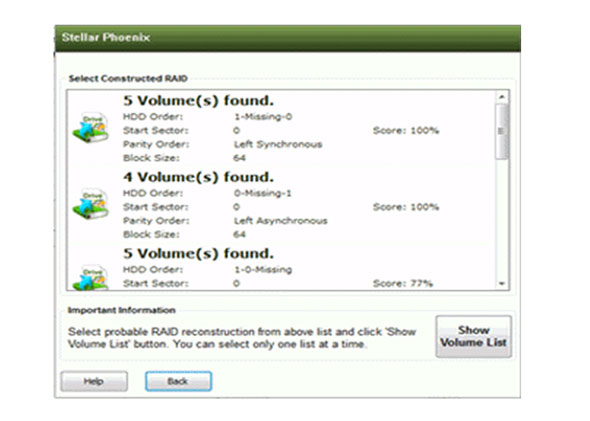

Select Probable RAID
The window displays the probable RAID construction. Select the appropriate RAID construction and click 'Show Volume List' button to go to the data recovery window.

Windows Data Recovery

Recover Data from RAID Volumes
The volumes in the chosen RAID construction get listed, which can be selected to perform various data recovery operations. Here if you want to choose another RAID construction from the previous list, click the 'Load Constructed RAID' button.
You can also create an altogether new RAID construction by clicking the 'Reconstruct RAID' button.

Windows Data Recovery

Create Virtual RAID Drive

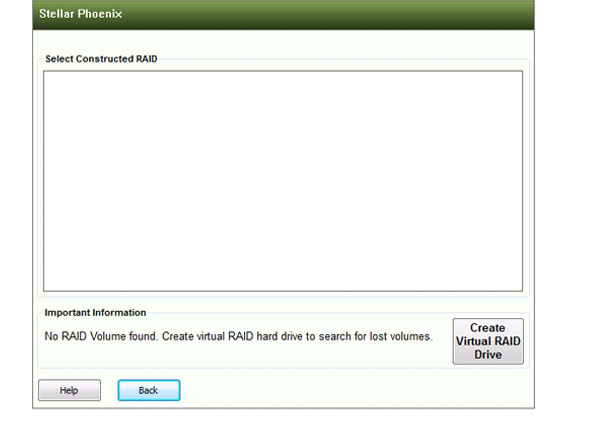

If you have failed to create any probable RAID construction, the software shows the 'Create Virtual RAID Drive' button to create a single virtual RAID construction.

Windows Data Recovery

Recover Data from RAID Virtual Drive
You can select the RAID virtual drive and perform 'Raw Recovery' or search your lost/deleted volumes from the physical RAID hard drives.

Windows Data Recovery

NOTE:Install and run Stellar Phoenix Remote Recovery Agent on the target machine from where you need to recover data before starting the recovery process on your system (source).

Remote Recovery
On the source machine, run the software, select the 'Advance Option' tab on the main interface, and then click 'Remote Recovery'.

Windows Data Recovery

Entering IP on Source
On the source machine, enter the IP address of the target machine in the 'IP Address' textbox and a valid port number (between 1025 and 65535) in Port textbox. Ensure that the software and Remote Recovery Agent are using the same port number.

Windows Data Recovery

Starting Remote Recovery Agent on Target

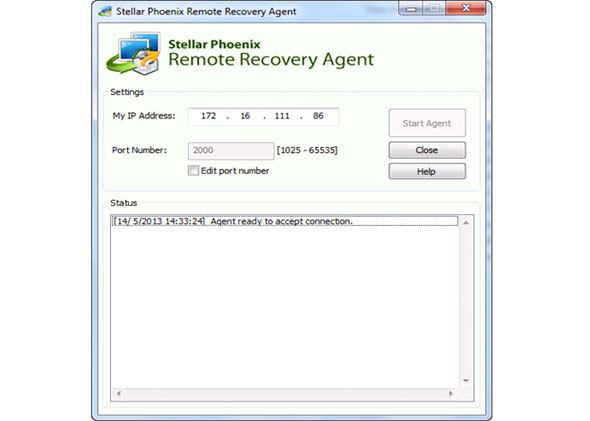

On the target machine, click 'Start Agent'. You will receive a message in the 'Status' box: 'Stellar Agent is ready to accept connection'.

Windows Data Recovery

Connecting Source to Target

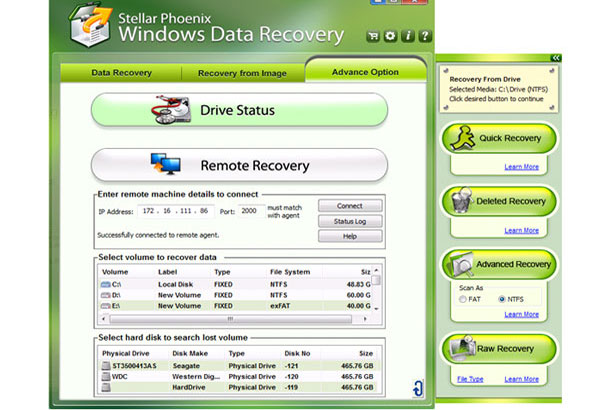

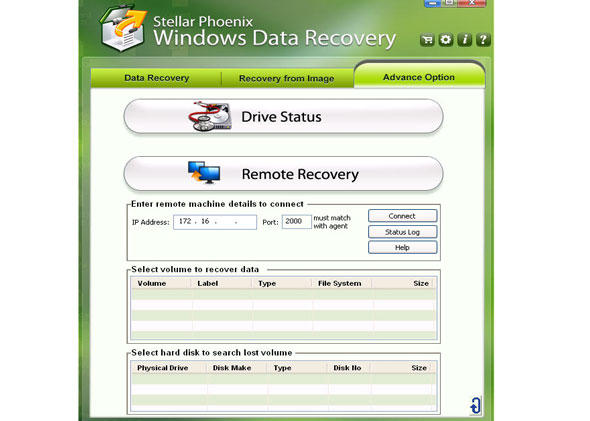

On the source machine, click 'Connect' in the 'Enter remote machine details to connect' section. Once a connection is established, you will get the message 'Successfully connected to remote agent'. All the hard drives and their corresponding volumes existing on the target will be listed in the 'Remote Recovery' module. Select a drive or volume and choose any data recovery option on the flying pane to recover data.

Windows Data Recovery

Home Screen

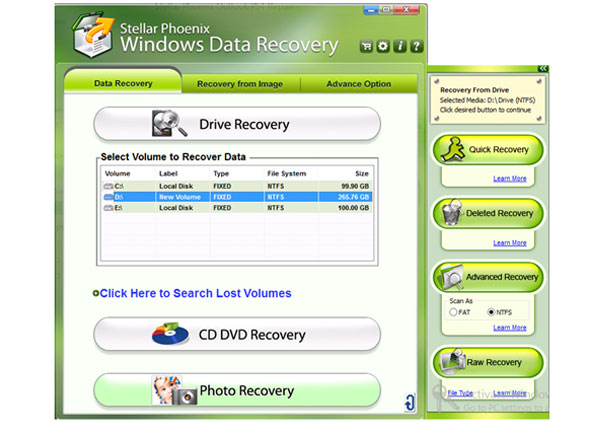

Click 'Drive Recovery' to display all volumes in your system. Select one of the displayed volumes under 'Drive Recovery'. On the flying pane to the right, click the desired data recovery option to start scanning.

Windows Data Recovery

Scanning Process

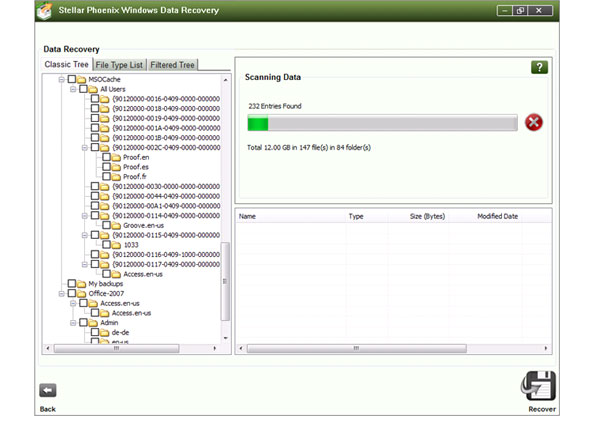

The progress bar in the top-right pane shows the scan status. During scan, the software prepares a tree-structured list of recoverable files in the left pane.

Windows Data Recovery

After Scan

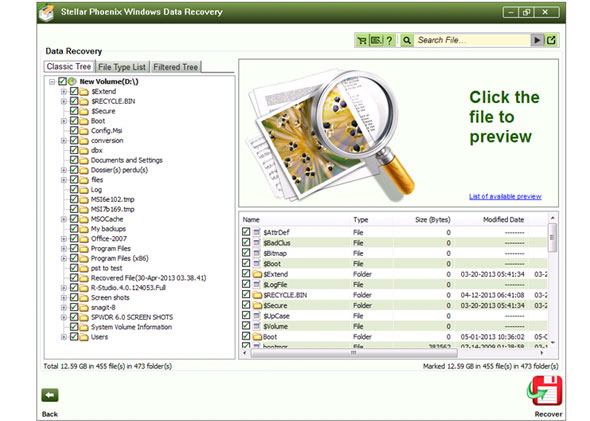

After finishing the scan, you see three tabs in the left pane that display all the recoverable files and folders in the selected volume.

Windows Data Recovery

Preview

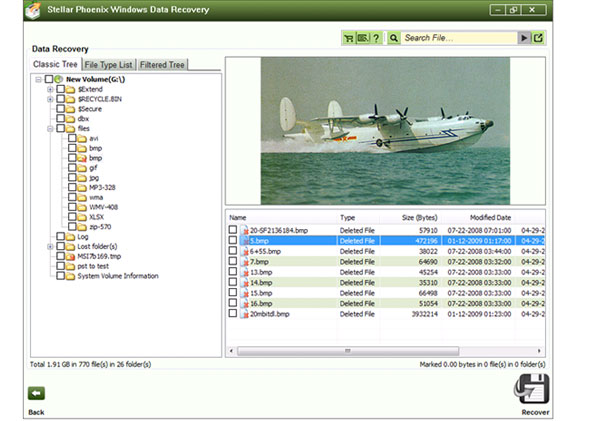

Select a folder in the left pane to list all files in this folder in the bottom-right pane. Click a file to display its preview in the main interface.

Windows Data Recovery

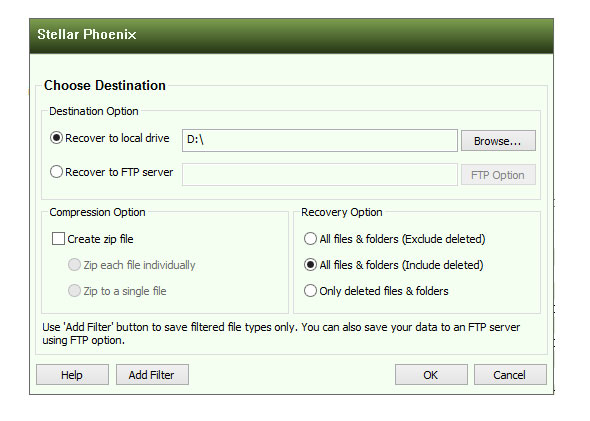

Select Destination

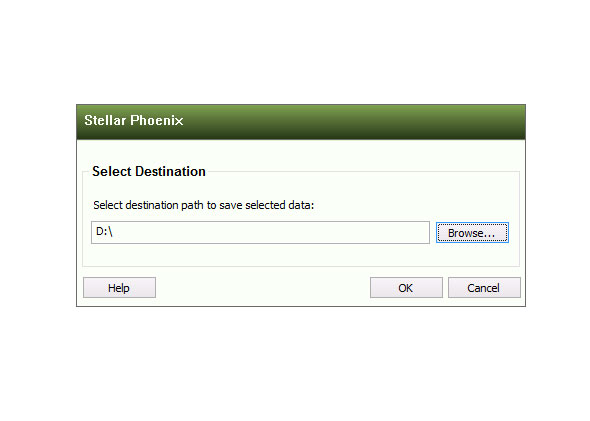

Select the desired files and folders for recovery and click 'Recover' button at the bottom. This opens up the Select Destination dialog. In this dialog, browse for a desired location to save the recovered data. Click 'OK'.

Windows Data Recovery

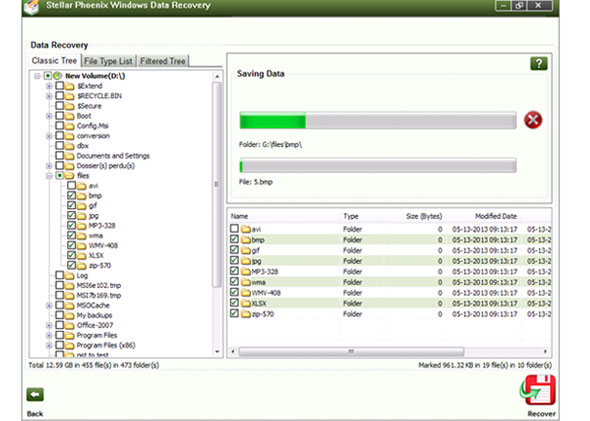

Saving Data
The software begins saving the selected files to your destination. You can observe the status of this task by viewing the two progress bars shown in the top-right pane.

Windows Data Recovery

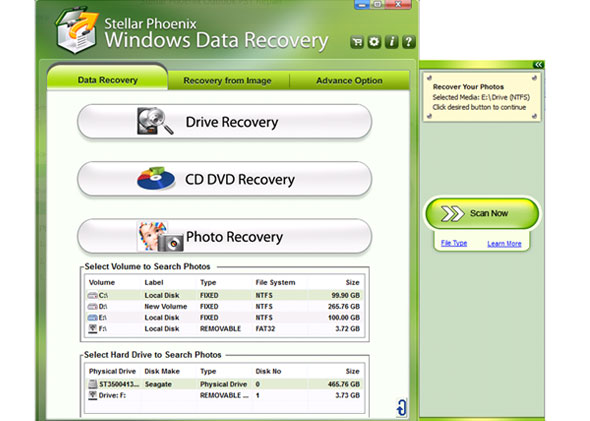

Select Volume or Hard Drive
On the main interface, click 'Photo Recovery' to display the 'Photo Recovery' module as shown below. Select the desired volume or hard drive for searching lost photos. On the flying pane, click 'File Type' below 'Scan Now' to select the file types you need to recover. Click 'Scan Now' to initiate the scan.

Windows Data Recovery

Preview Images

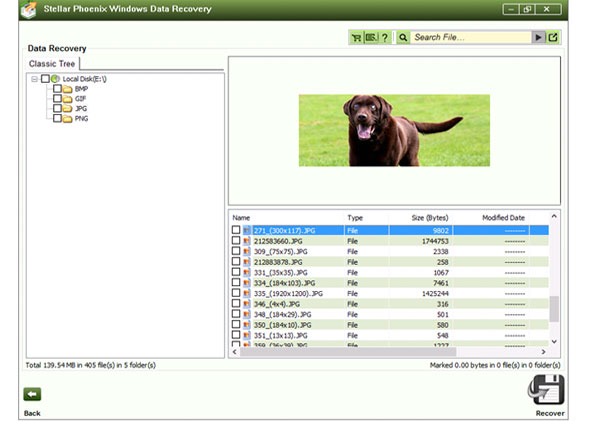

The software generates a tree-structured list under 'Classic Tree' tab after scan. This list contains folders representing distinct file types. Click on a folder and select a desired image in the bottom pane to see its preview.

Windows Data Recovery

Select Destination
Select the files and folders you need to recover and click 'Recover' button to display the Select Destination dialog. Provide a destination for saving the recovered photos and click 'OK'.

Windows Data Recovery

Home Screen

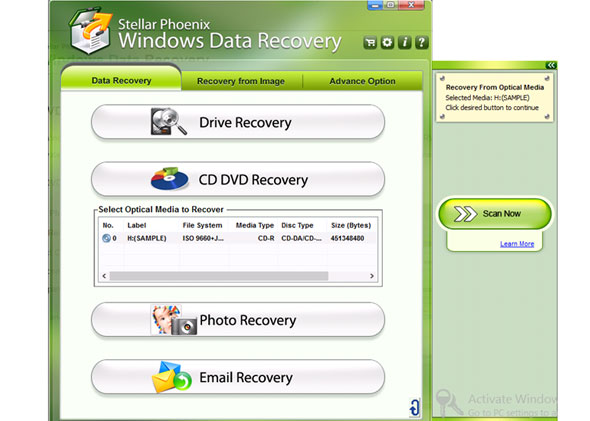

Click 'CD DVD Recovery' on the main interface to display 'Select Optical Media to Recover' section as shown below. In this section, select your optical drive and click 'Scan Now' on the flying pane to the right for scanning this drive. NOTE: Insert your optical media into the CD/DVD ROM before running the software for recovering files.

Windows Data Recovery

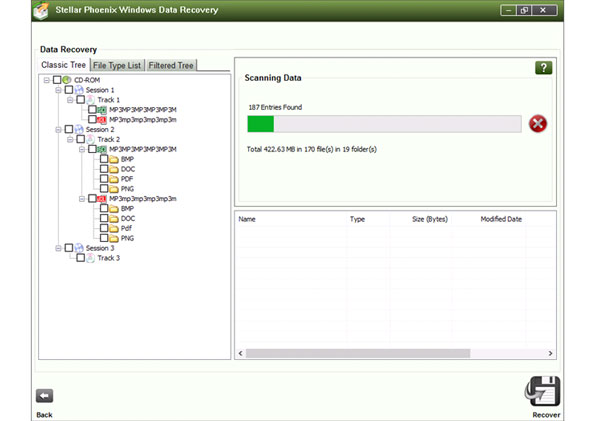

Scanning Process
The software begins scanning your optical media and displays all recoverable data in different sessions found on the disc. You can see the scan status in the progress bar. You can also select and preview any file in the main interface. Select the files for recovery and click 'Recover'.

Windows Data Recovery

Select Destination
The software prompts you to provide a destination for saving the recovered data. Browse for the desired destination and click 'OK'.

Windows Data Recovery

Select Outlook PST
When you click 'Email Recovery', you come across the below interface screen. Select 'MS Outlook' in the 'Select appropriate mail client' box and click 'Select PST' to select a PST file for recovering emails. Click 'Find PST' to search for PST files in your system. Click 'Start Recovery' to start scanning.

Windows Data Recovery

Find PST Files

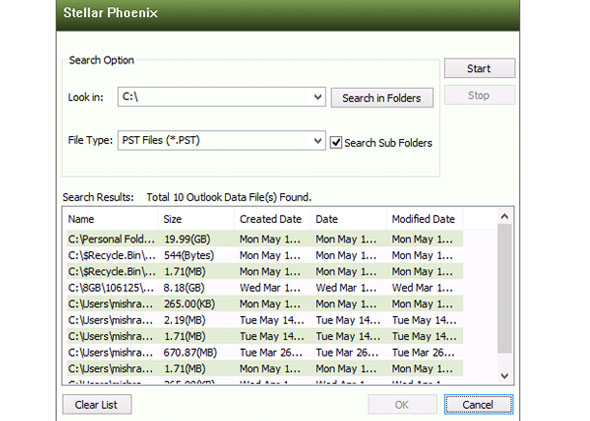

The 'Find PST' option displays a dialog where you can specify the drive to be searched and the corresponding file type. Clicking 'Start' initiates the process and gives you a list of PST files in the selected drive. Select the desired PST file and click 'OK'.

Windows Data Recovery

Scanning Process

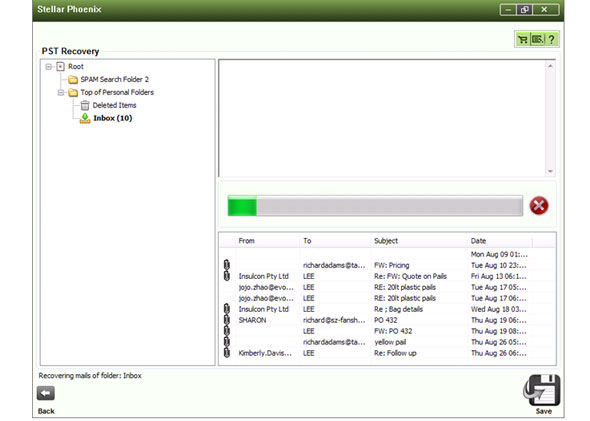

The software initiates the PST scan process and displays all mail data in the left pane. You can view the progress bar to know the percentage of scan completed.

Windows Data Recovery

Saving Options
Select the items for recovery in the left pane and click 'Save'. In the dialog box that shows up, select your desired 'Save As' option and the destination path. Click 'OK'.

Windows Data Recovery

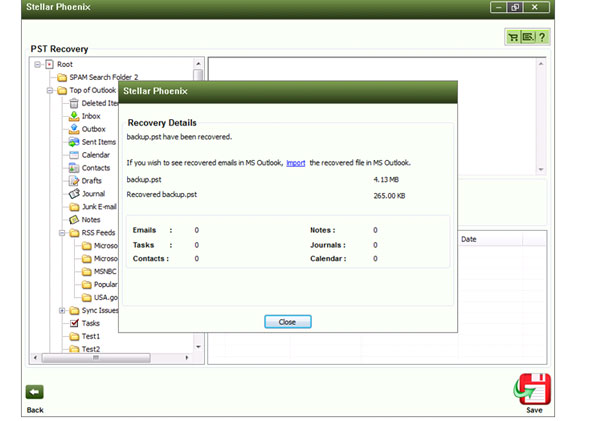

Saving Process Completed
The software displays a dialog that shows the sizes of the original and recovered file, and the number of different objects recovered.

Windows Data Recovery

Select DBX
In 'Email Recovery' module, select 'Outlook Express', and then click 'Select DBX' to select a DBX file for recovery. Click 'Find DBX' to search for DBX files if the path of required DBX file is unknown. Click 'Start Recovery' to start scanning the selected file.

Windows Data Recovery

Find DBX Files

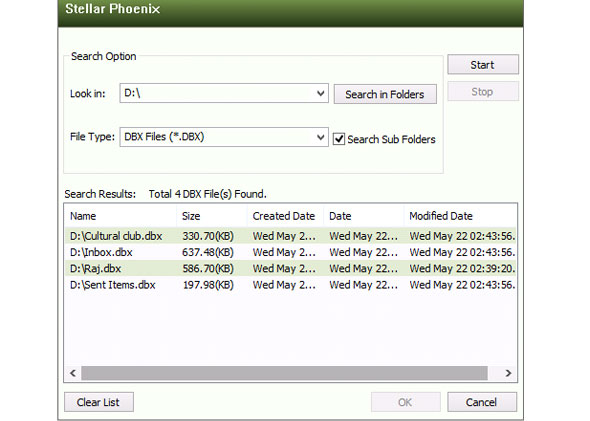

Specify the search options ('Look In' and 'File Type') and click 'Start' to start searching. The software lists all DBX files found in the selected drive. Select the desired DBX file in this list and click 'OK' to begin the scan process.

Windows Data Recovery

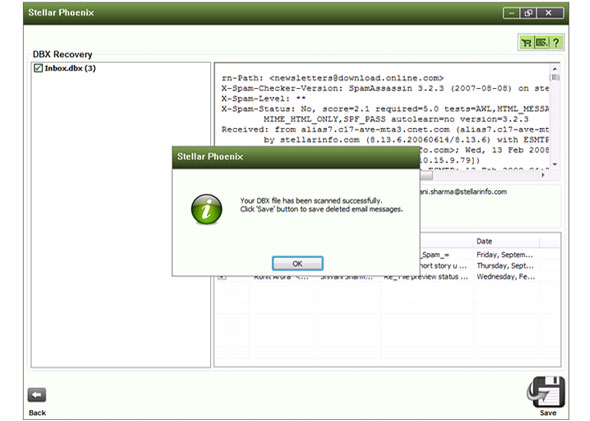

Scanning Process Completed
Once the software finishes the scan, it shows all the recoverable mail items in the main interface and prompts you with the below message. Select your DBX file and click 'Save' at the bottom.

Windows Data Recovery

Saving Options
In the 'Save File Option' dialog, select the desired 'Save As' option and the destination path. Click 'OK' .

Windows Data Recovery

Saving Process Completed

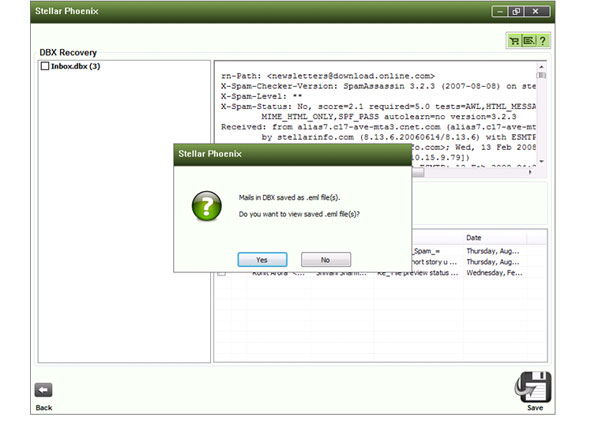

You get an acknowledgement message after completion of the process. Click 'Yes' to view the recovered file.

Windows Data Recovery

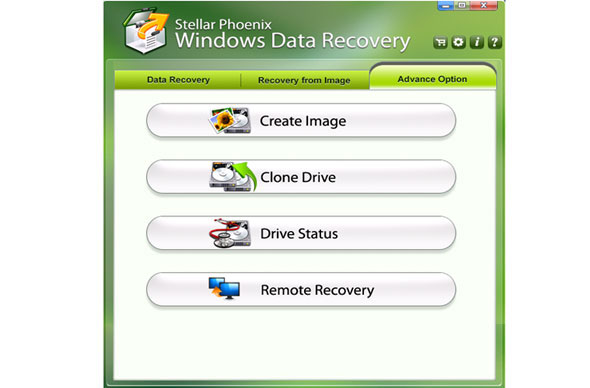

Advance Options

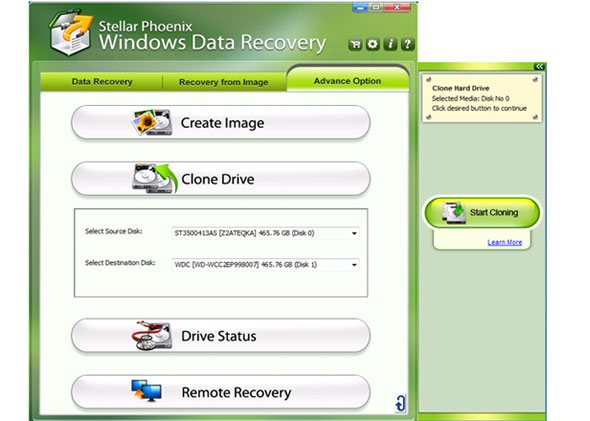

Navigate to the 'Advance Option' tab to access additional features of Stellar Phoenix Windows Data Recovery.

Windows Data Recovery

Clone Drive
Select the hard drive to be cloned in the 'Select Source Disk' box and the destination drive in the 'Select Destination Disk' box. Click 'Start Cloning' on the flying pane to initiate the cloning process.

Windows Data Recovery

Create Image

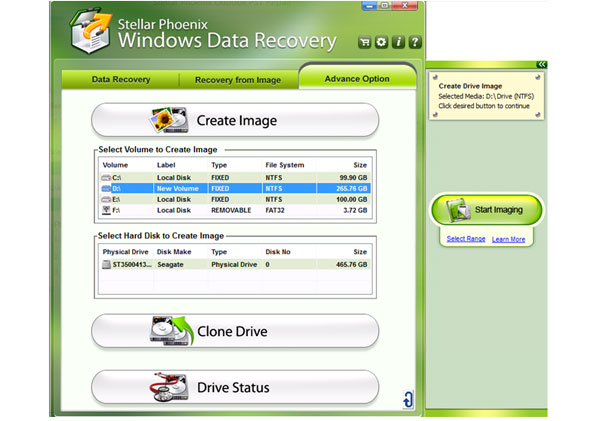

Click 'Create Image' button and select a volume or physical disk for imaging. On the flying pane, click 'Select Range' below 'Start Imaging' to select a range of the media sectors to be imaged. Click 'Start Imaging' to perform the imaging process. The image is saved as '.img' file.

Windows Data Recovery

Drive Status

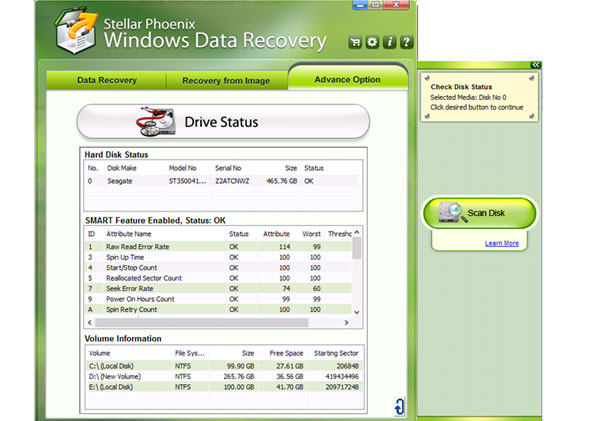

Click 'Drive Status' to get general information about your hard drive and various SMART attributes. Select your hard disk and click 'Scan Disk' on the flying pane to scan this disk for bad sectors.

Windows Data Recovery

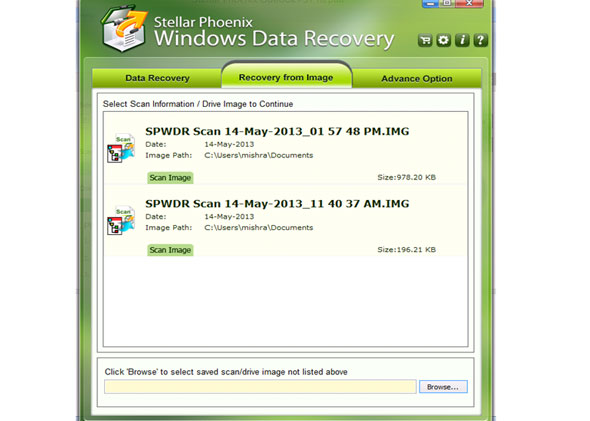

Recovery from Image
Select the image file from which you need to recover data. Click 'Browse' if the required file is not listed under 'Recovery from Image' tab. The software scans the image and lists files in the main interface for recovery.

Windows Data Recovery
