Redundant Array of Independent
Disks or RAID 5 is a logical arrangement of minimum 3 drives that act as a
single virtual disk volume to facilitate faster read speed and fault-tolerance.
RAID 5 is popular among
professionals and businesses as it’s the most affordable RAID array that
facilitates faster read speed—equivalent to RAID 0—with redundancy.
However, a RAID 5 array protects against single disk failure
only. It may unmount or fail to mount due to multiple disk failure or logical error
caused by abrupt system shutdown, system
crash, power surges or failure, malware/virus attack, and disk errors etc.
What to Do When RAID 5 Fails To Mount
When a RAID 5 volume fails to mount, the access to the data
it contains is permanently lost. And there is no way to get it back other than fixing
the error. In most cases, it’s rebuilding or reconstructing the RAID array.
However, before you
head to the rebuilding process, check the SMART status of all member disks. Use
the Drive Monitor or CrystalDiskInfo tool.
But a RAID 5 volume may fail
to mount even after rebuilding process. It’s a complex situation, and you
shouldn’t try to force mount the RAID. This happens due to some missing information
(metadata) after rebuild.
In such cases, you should recover data by using a RAID 5
data recovery software such as Stellar
Data Recovery Technician. Once you get back your data from a RAID 5 volume,
reconstruct a fresh RAID 5 arrangement from scratch and restore your data.
Steps to Recover Data from Unmounted or Failed RAID 5 Array
Step 1: Disconnect Drives from the RAID 5 Array
Follow the steps in the given order to reconstruct a RAID 5 volume for recovery safely:
Remove RAID 5
drives from the array and connect them to a Windows system by using SATA
connectors. You may also use SATA to USB converter cables.
Step 2: Check Drive Health & SMART Status
Free download, Install, and run Stellar Data Recovery Technician software. Then,
Select connected RAID 5 drives from the top-left dropdown to check the drive health status.

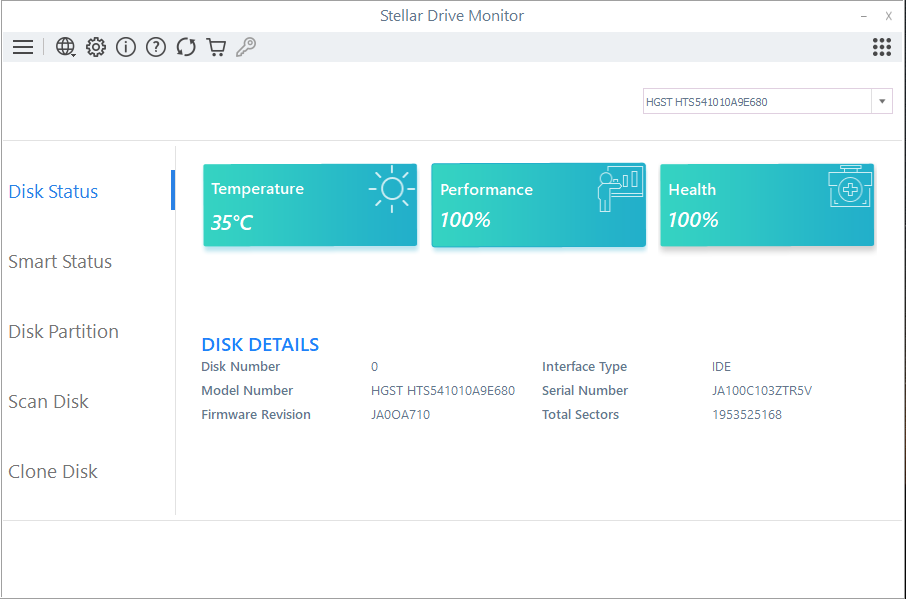

You may further click ‘SMART Status’ to inspect the critical SMART parameters of the drive for a warning sign
If there’s no warning sign and software displays vital stats as green, proceed with next step, else follow this guide to clone a failing drive (the drive(s) with health or SMART status warning)
Step 3: Reconstruct Unmounted RAID 5 Array to Recover Data
Close the Drive Monitor utility and click ‘Recover Data’. Then,
Data’ and click ‘Next.’
Click Next, then on next screen- under Other Locations, select ‘RAID Recovery’ and click ‘Scan.’
5 tab and use the left/right arrow
button to select and move the RAID 5 hard disks listed under ‘Select Hard drives to reconstruct RAID’
to ‘Move hard drives up/down for disk order’ list box
Use the up/down arrow buttons beside the added
hard disks to arrange them in the same sequence as they were in the RAID array
Enter or choose a start sector value
You may click the ‘Don’t know
start sector of drives. Show a list of
probable start sectors’ checkbox if you don’t know or remember the start
sector. Then choose one or more probable start sector(s) or add desired start
sector in the text box if it’s not listed in the checklist box
Then click the ‘Add Sector’ button
Size; Select Parity Order/Rotation and then select the parity repetition or delay from respective dropdowns.
Select ‘Don’t Know’ from the
required parameter drop-downs if you don’t know or remember the required RAID
parameters, and click ‘Build RAID’.
The software intelligently rebuilds a few probable RAID constructions, which
you can scan to get back lost data
Click the ‘Build
The software quickly reconstructs RAID 5 volume

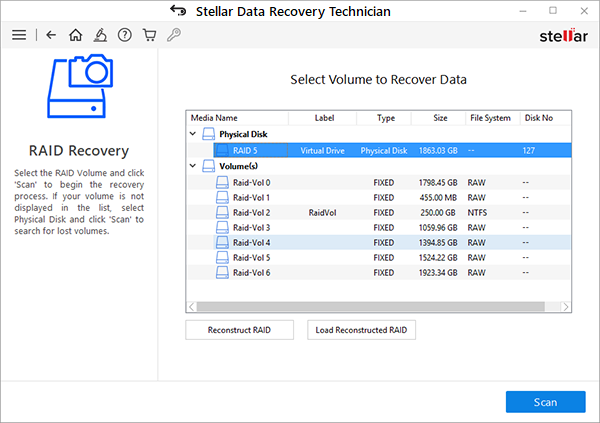

based on provided parameters. After reconstruction is finished, constructed RAID 5 volume(s) is displayed in the ‘Select
Constructed RAID’ window. Click ‘Show
Volume List’ to view reconstructed RAID
TIP: In case the desired RAID 5 volume is not listed, choose ‘Physical Disk’ and click ‘Scan’ to recover
from missing RAID 5 volume (see screenshot below)
Select the RAID
5 volume from the list and click the ‘Scan’
button. Wait for the scan to finish
Here’ link beside Deep Scan text
at the bottom to start a through scanbased on file-signatures. Use it when the desired files are
not found in the scan results

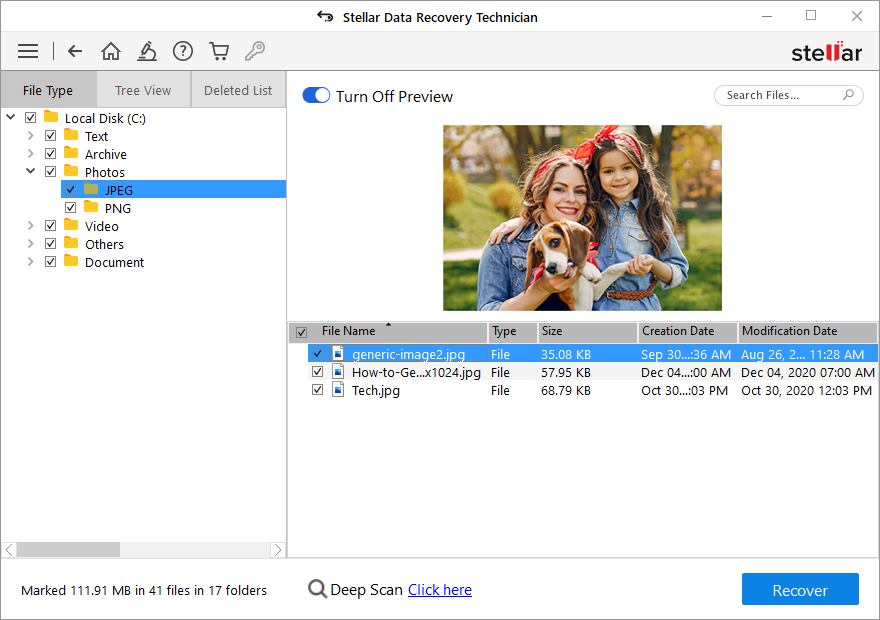

Click on a file to see its preview or select
the check boxes of a file or folder that
you wish to recover

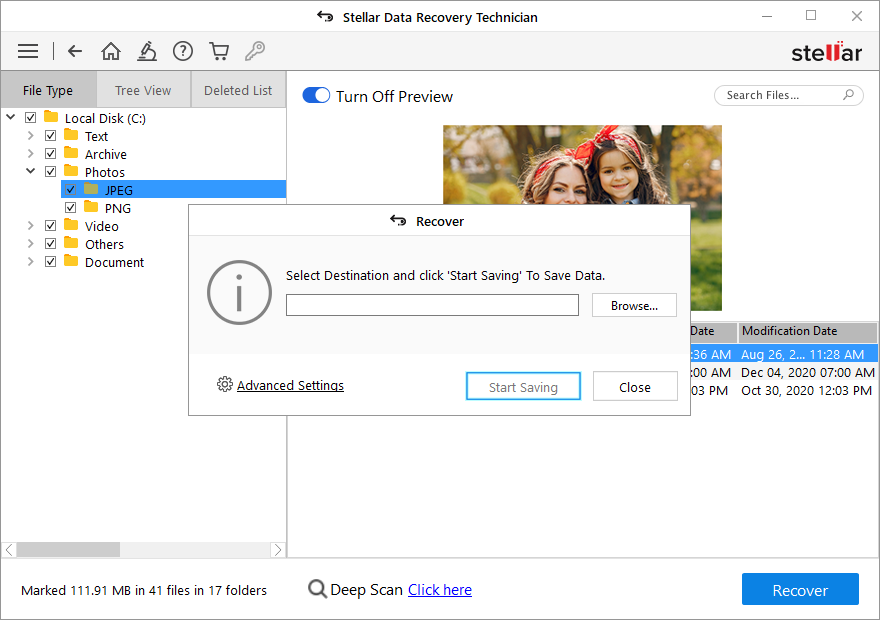

Then click Recover>Browse to choose a location on a separate internal or
external disk where you want to save the RAID 5 recovered data.
Do not to select any of the connected RAID
Finally, click ‘Start Saving’ to save selected files and folders at your desired location
Keep a regular backup of data stored on your RAID 5 array.
RAID 5 provides fault-tolerance; however, it is prone to logical errors. Thus, it’s
not fail-proof and requires a backup. Follow the 3-2-1 backup rule for critical data backup. Use external drive and cloud
storage for ‘not so important’ files.
And use Stellar Data Recovery Technician software to reconstruct and recover data from a damaged, failed, or unmounted RAID 5 configuration, when the backup is obsolete or not available.
The RAID Data software also helps you repair corrupt photos and video files, actively monitors disk health, and facilitates data recovery from all kinds of Windows storage media and RAID 0, RAID 5, and RAID 6 arrays.
