Secure Enclave Explained: Why Recovery Depends on Authentication

For years, the concept of a "secure computer" was, to be honest, largely a software-driven ambition. Operating systems like macOS relied on kernel level protections to separate our data from malicious processes. As the sophistication of cyberattacks grew, it became quite clear that software alone was not sufficient at all. If an attacker could compromise the kernel, they could scrape off encryption keys directly from the system’s RAM. Apple’s response to this vulnerability was the Secure Enclave, a hardware-based security processor that just functions independently inside the System on a Chip (SoC). Let’s dive deep and know more.

What is the Secure Enclave?

The Secure Enclave is a dedicated secure subsystem that is integrated into Apple’s SoC. It has been designed to provide an extra layer of security by isolating sensitive data from the main processor. It is a "computer within a computer" that has its own processor, memory and operating system… all of which are shielded from the primary macOS environment.

• The Kingfisher Core and Hardware Isolation: The Secure Enclave runs on its own ARM-based processor called the Kingfisher core. It is fully separated from the main chip to reduce the risk of side-channel attacks. It also runs at a lower clock speed for better predictability. This core uses a small, custom operating system called sepOS, which only performs specific security tasks. It communicates with the main processor through a hardware system known as the Secure Mailbox.
• Memory Protection and Reserved Secure Memory: The Secure Enclave needs more working memory than its tiny internal RAM so during startup the main processor sets aside a protected region of system RAM for Enclave use (sometimes called “TZ0” in engineering notes.) Once the Enclave is running, hardware prevents the main CPU and OS from reading or tampering with that area. To mitigate physical attacks such as cold-boot extraction the reserved memory is encrypted with ephemeral and boot-only keys produced by the device’s true random number generator. Those keys are discarded on shutdown or reboot, making leftover data unreadable.

What Data and Functions Does the Secure Enclave Handle?

It is very crucial to understand that the Secure Enclave actually does not "store" your files, photos or passwords if we think in a traditional sense. Instead it stores the keys that unlock them and the templates that verify who you are.

• Biometric Integrity: When you set up your Touch ID or Face ID, the sensor actually captures your biometric data and just encrypts it immediately. It is sent directly to the Secure Enclave and the main system never sees it. The Enclave turns it into a secure template and just returns a simple “yes” or “no” during unlock.
• Cryptographic Key Management: The Secure Enclave acts just as a hardware-based key manager. It can generate Elliptic Curve (NIST P-256) keys that are non-exportable actually. This means the private key is born inside the enclave, it lives in the enclave and then just dies in the enclave. It never exists in the system RAM in plaintext.
• The Role of the TRNG and AES Engine: To ensure that those keys are truly unpredictable, the Secure Enclave includes its own TRNG that is based on multiple ring oscillators. This entropy is used to seed the generation of keys. This just makes sure that the cryptographic "work" happens in a vacuum separate from the noise of the rest of the computer.

How Secure Enclave Works With APFS Encryption

The introduction of the Apple File System (APFS) in 2017 brought a sophisticated, multi-layered encryption architecture that works in tandem with the Mac Secure Enclave. This isn't just a simple "on/off" switch for encryption… It is a complex hierarchy of keys that ensures both high performance and granular security.

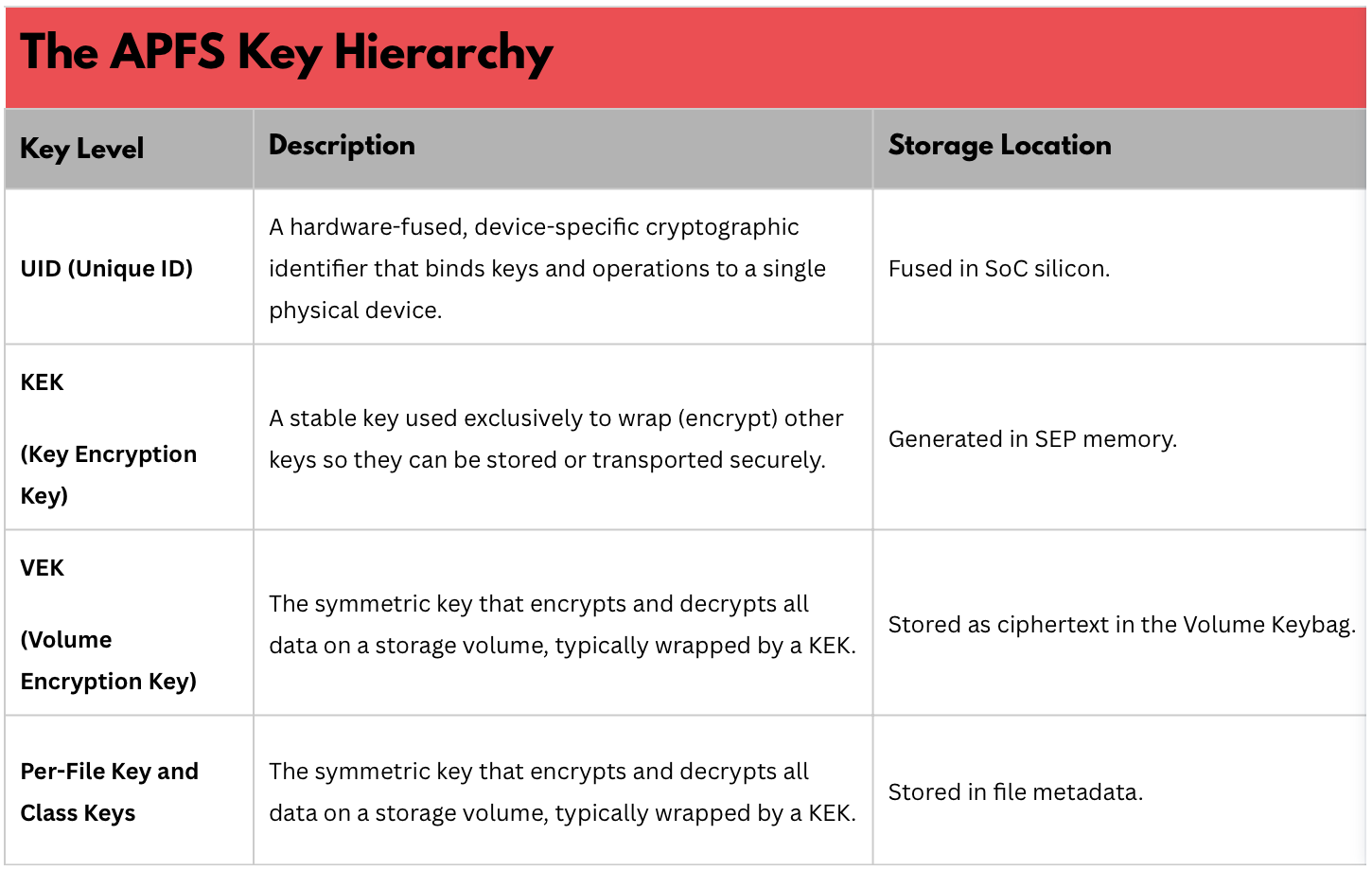

APFS Keys: To understand why a Mac's drive is so hard to recover, one must visualize the "tangling" of keys. At the very bottom of the stack is the UID (Unique ID)... a 256-bit AES key fused into the SoC during manufacturing. No one, not even Apple, has a record of this key. It is followed by KEK, VEK, Per-File Key and Class Key as explained below:

Sealed Key Protection (SKP): On Macs with Apple silicon, the system actually utilizes Sealed Key Protection (SKP). This makes sure that those keys required to unlock the data volume are released if only the system's software is in a known trusted state.

The Private AES Channel: One of the most innovative features of the T2 and M-series chips is the dedicated private channel between the Secure Enclave and the hardware AES engine. When your file system needs to read just an encrypted block of data, the Secure Enclave provides the necessary keying material directly to the AES engine. This key transfer only happens over a physical wire that is not accessible to CPU inspection. Even if an attacker has total control over the macOS kernel, they cannot even "sniff" the keys as they are being used to decrypt your files.

Authentication Pipeline

The "Authentication Pipeline" is the logical journey that starts with a user’s finger and ends with a decrypted file. It is the only "official" way to gain access to the keys managed by the Secure Enclave.

• Secure Tokens and User Creation: In APFS and macOS ecosystem, not all users are actually created equal. To unlock a FileVault-encrypted drive, a user must have a Secure Token. This token is basically a cryptographic "ticket" that allows the user’s password to participate in the key-unwrapping process.
• The 48-Hour Biometric Timer: The Secure Enclave is designed to balance your convenience with security. Touch ID is although great for daily use, it is considered just a "convenience" credential. The enclave enforces strict rules on when biometrics can be used.
  • Restart: After a reboot, the Secure Enclave requires the full password. This is because the password derived KEK must be recalculated to unlock those biometric templates.
  • Timeout: If the Mac has not been unlocked for approximately 48 hours (varies based on the device type and policy), the biometric token in the enclave expires, and the password must be re-entered.
  • Failures: After five unsuccessful biometric attempts, the enclave disables Touch ID and demands the passcode.
• Rate Limiting and Anti-Hammering: The Secure Enclave is the "clock" that regulates brute-force attacks. When a password is submitted, the enclave doesn't just check the result; it increments an internal counter in its Secure Storage Component. This component is separate from the main NAND flash storage. If you enter the wrong password, the enclave enforces a delay. As the number of failed attempts increases, the delay grows exponentially: 1 minute, 5 minutes, 15 minutes, and eventually 1 hour.

Why Recovery Depends on Authentication

The core philosophy of the Secure Enclave is that access is cryptographic, not physical. This is the single most important concept for anyone facing a data loss situation on a modern Mac. In the past, "recovering data" meant getting the physical bits off the disk. Today, "recovering data" means satisfying the Mac Secure Enclave’s authentication requirements.

• The UID "Tangle": Your encryption key for your files is secured with a key that has been partially created from the hardware UID, meaning it physically locks your data to a specific piece of silicon located on the motherboard. This creates a situation where your SoC (the brain) and your NAND memory are one continuous unit that cannot be separated.
• Authentication as the "Key Generator": The enclave computes the key using your password and its own internal secret. This means that there is no "master key" hidden on the disk that a recovery tool can simply "find." If you don't have the password (or a recovery key), the key is lost forever.
• Effaceable Storage and Cryptographic Erasure: Apple devices utilize an area of storage called Effaceable Storage. This area holds a "wrapper" key that is necessary to reach the file system metadata. When a user selects "Erase All Content and Settings," the Secure Enclave simply overwrites this tiny piece of effaceable storage. This is known as Cryptographic Erasure.

Recovery Scenarios

The feasibility of data recovery on a Mac is determined by where the "chain of trust" has been broken. We can categorize these into three main levels of difficulty.

Scenario A: Logical Failure (Deleted Files/Formatted Volume)

This is the most common scenario and fortunately the one with just the highest success rate.

• The Problem: Once the user authenticates, the volume is unlocked and it appears as a standard disk to the OS. However, SSDs use TRIM command that tell the drive to erase deleted blocks just to maintain speed.
• The Solution: A professional-grade Mac data recovery software can bypass the "deleted" markers and actually scan the raw decrypted blocks for file signatures. As long as the TRIM command hasn't been fully executed or the blocks haven't been overwritten at all, the data can be reconstructed.

Scenario B: Forgotten Password or Corrupt Account (Authentication Failure)

This is a much dire situation. If the user forgot their password and has no recovery key:

1. MDM/Recovery Key: If the Mac is managed by a company, they likely have a FileVault Recovery Key that is escrowed in their MDM server. This key can actually be used as an alternative to the password.
2. iCloud Recovery: If the user enabled iCloud recovery for FileVault, they can use their Apple ID to reset that password.
3. No Fallback: If there is no recovery key and no iCloud link, the data is essentially just lost. The Secure Enclave's rate-limiting prevents any realistic brute-force attempt though.

Implications for Forensics & Enterprises

The Secure Enclave has forced a total re-evaluation of how digital evidence is collected and how corporate data is managed.

The Forensic Shift: From "Dead" to "Live"

In the "old days" of forensics, an investigator would find a computer, turn it off, and take it to a lab. This is now considered risky. If an M2 Mac is powered off and the investigator doesn't have the password, they are looking at an unreadable brick.

• Live Acquisition: Modern forensics prioritizes "live" capture. If a Mac is found unlocked, investigators use specialized tools to "dump" the RAM and the file system while the Secure Enclave is still in its "authenticated" state.
• Checkm8 and Beyond: While some exploits (like Checkm8) allowed for Mac Secure Enclave bypass on older A-series chips, modern A12+ and M-series chips have patched these hardware vulnerabilities.

Enterprise Challenges: Activation Lock and Offboarding

For IT managers, the Secure Enclave presents a logistical hurdle. If an employee is fired and leaves behind a Mac locked to their personal Apple ID, the Mac is effectively e-waste. This is because Activation Lock is enforced by the Secure Enclave's check-in with Apple's servers. Enterprises must use MDM to disable Activation Lock and ensure that FileVault recovery keys are always stored in a central, secure repository.

Best Practices to Prevent Data Loss

The "Secure Enclave Era" is an era of personal responsibility. If you don't have a plan, you don't have your data.

1. The 3-2-1 Backup Strategy: 3 copies of your data (the original + 2 backups), 2 different media (external drive and just a cloud service) and 1 copy offsite.
2. Enable FileVault Recovery Keys: When you turn on FileVault, choose the option "Create a recovery key and do not use my iCloud account" if you want maximum security but just print that key and put it in a safe.
3. Proactive Drive Monitoring: SSDs don't show mechanical signs of failure like HDDs so no clicking or grinding. You must use software that monitors those SMART attributes like Percentage Used and Available Spare. If your "Available Spare" starts dropping, your NAND is dying and you just have to evacuate your data.
4. Liquid Damage Protocol: If you spill water on your Mac, turn it off right there. Do not use rice. Do not try to “see if it still works.”

Conclusion

The Secure Enclave is a masterpiece of modern engineering, a paranoid, socially distant, but incredibly effective guardian of our digital identities. It has successfully moved the goalposts of cybersecurity, making our personal devices some of the most secure systems on the planet. However, this security is a double-edged sword. By "tangling" our data with a specific piece of hardware and a specific biological signature, Apple has removed the "safety nets" that we once relied on in the era of mechanical drives. The lesson of the Secure Enclave is clear: in an age of absolute security, your only true defense is a proactive backups.
